Ergonomic Foldable Duty Seat for Fire Trucks
Designed for professional interventions, it combines comfort and safety in one.

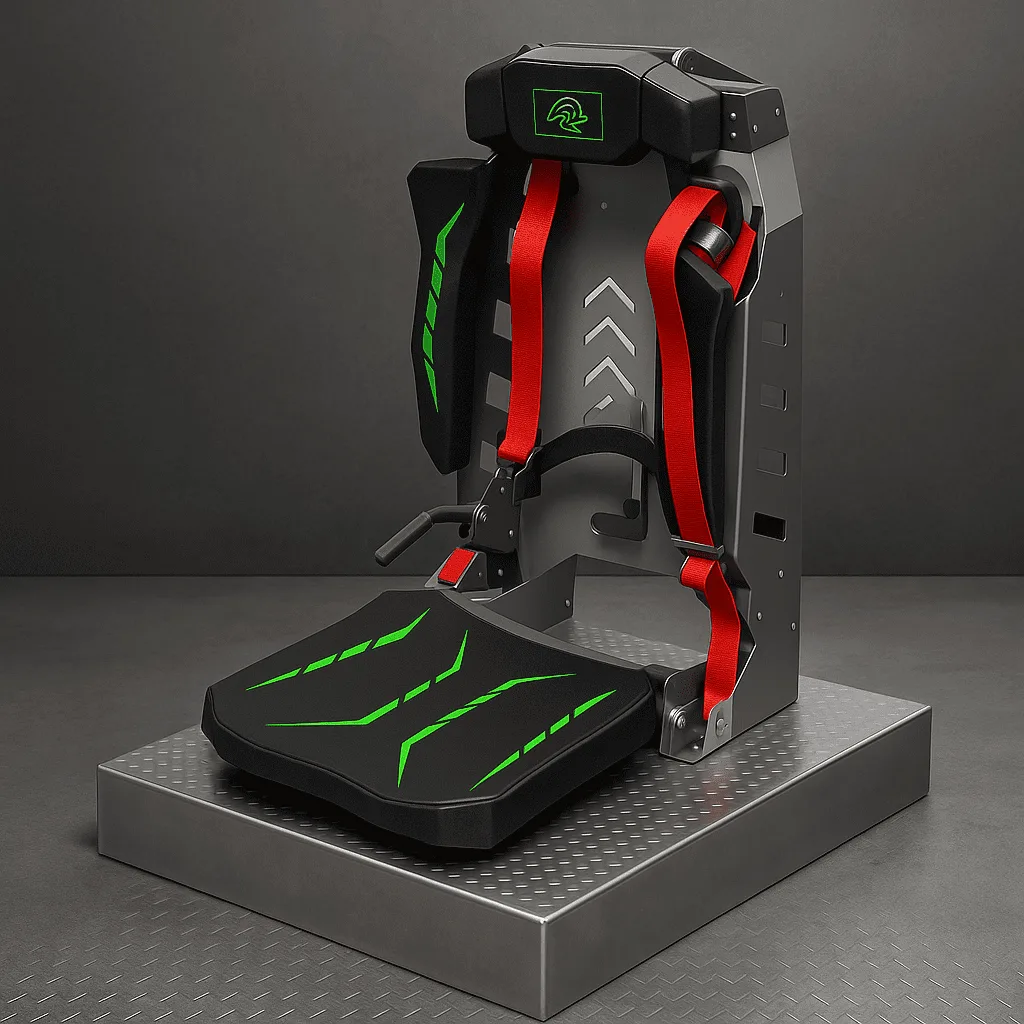

This specially designed seat has been developed to allow personnel to sit safely and ergonomically while carrying an oxygen cylinder on their back during fire and rescue operations. An integrated cylinder slot on the back is specifically designed to secure the personnel’s oxygen tank to the seat. Thanks to the locking mechanism, the cylinder remains fixed during movement, ensuring safety and balance.
Compatible with Oxygen Cylinder
Lockable Cylinder Slot
Modular Backrest (Optional)
Optionally, in operations where an oxygen cylinder is not used, a modular backrest plate can be easily mounted without removing the cylinder slot, thanks to special connection points. This enables fast adaptation of the seat for both with and without cylinder use. The seat is mounted securely to the vehicle floor using a dedicated base bracket. The seat cushion features a foldable design for space-saving. The structure complies with ECE R14, R16, R17, and R80 regulations. Flame-retardant ECE R118 A1 certified foam and fabric are used. Compatible with 3-point seat belt systems.
This seating system ensures a seamless transition between scenarios where the operator may or may not carry an oxygen cylinder. The specially designed rear slot includes an integrated locking mechanism that secures the cylinder in place, offering maximum safety during missions. Depending on the operational requirements, a detachable backrest panel can be installed, allowing rapid reconfiguration. Thanks to its modularity, the seat adapts quickly in the field, enhancing both functionality and operational speed.
The seat upholstery is manufactured from flame-retardant fabric and foam in compliance with ECE R118 A1 standards. Its structure is fully compatible with 3-point seatbelt systems and meets the ECE R16 safety regulation. This ensures superior in-vehicle safety without compromising comfort. All structural components have been tested in accordance with ECE R14, R17, and R80 standards.
Thanks to the specially designed mounting base, the seat can be securely fixed to the vehicle floor without requiring sidewall connections. This feature reduces installation time and provides flexibility within the vehicle's interior layout. The foldable seat base allows space-saving when not in use, optimizing the vehicle’s internal organization.
